body h1, h2, h3, h4, h5, h6 a, a:active, a:hover, a:visited td div.footer > > a @media (min-width:768px) , } @media (min-width:992px) ,.col-md-6 } @media (min-width:1200px) ,.col-md-6 } , , > li > li > a > li > a:hover, > li > a:focus > li > a > img @media (min-width:768px) } , , @media (min-width:768px) } , , .in @media (min-width:768px) .collapse .in } @media (min-width:768px) } , @media (min-width:768px) } > li > a @media (min-width:768px) > li > li > a .navbar-right:last-child } @media (min-width:768px) } Our eBay Store About Us Contact Us Add to Favorite Sellers 50-1005 AEM High Flow Inline Fuel Pump 400LPH @ 40 psi - 10AN Inlet - 6AN Outlet. AEM's 400LPH AN Fittings High Flow, High-Pressure Inline Fuel Pump is designed for high performance naturally aspirated and forced induction EFI vehicles. It can be installed externally or in-tank using optional hardware that is sold separately (see part numbers, below). It utilizes the industry standard "044 Style" envelope and -10 AN female inlet and -6 AN female outlet connections for easy installation on new applications and for quick replacement of existing competitor fuel pumps. The 50-1005 fuel pump delivers incredible performance and value.AEM's 400LPH High Flow, High-Pressure Fuel Pump (AEM 50-1005) is capable of supporting over 1,200 HP normally aspirated and a whopping 860 HP at 30 psi boost.* It flows 400LPH (100 gph) at 40 PSI, 340LPH (90 gph) at 73 PSI, and 270LPH (71 gph) at 120 PSI. Complete flow curves from 35 to 120 PSI and current draw vs. fuel pressure charts are available in the Specs section, below.The AEM 400LPH AN Fittings High Flow Fuel Pump is rated for use with ethanol-blended fuels, (E85/E90) and all types of gasoline, but pump life will be diminished if used with 100% ethanol fuels. The inlet thread is a -10 AN female ORB (O-ring port fitting) and the discharge is a female -6 AN ORB (O-ring port fitting).A male -6 to -8 AN discharge fitting with integral high-pressure check valve, terminal nuts, terminal boots and installation instructions are included. Optional

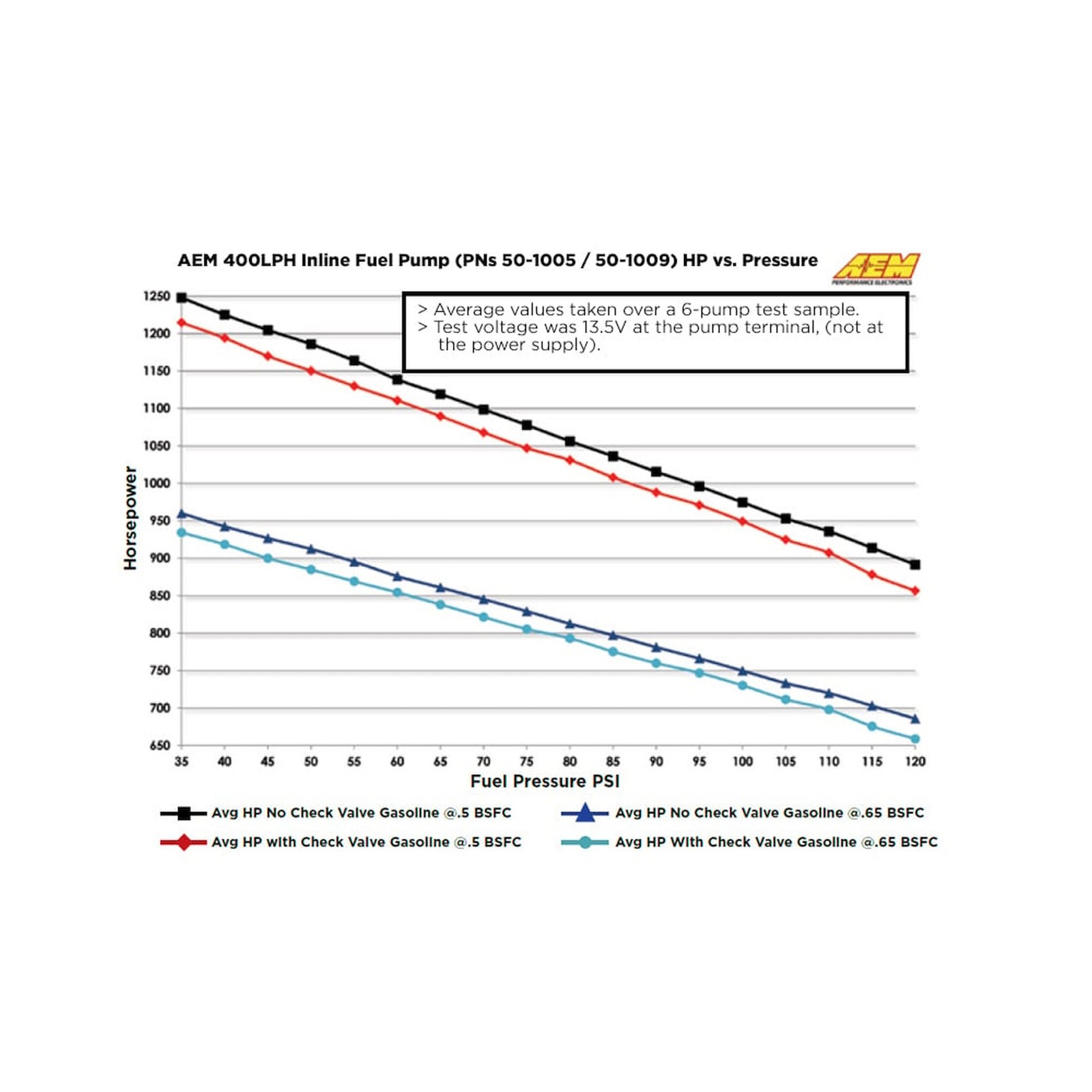

accessories that are sold separately include a -10 ORB fitting inlet pre-filter (for use with in-tank installations), and both -8 and -6 discharge adapters without integral check valves. Accessory fittings are hard anodized.. TECHNICAL SPECS: Weight: 35.8oz (1015 grams) Outside Diameter: 60mm OD External Materials: Black plated steel with laser etching, with zamac discharge end cap Inlet Fitting: -10AN 7/8"-14 Female Outlet Fitting: -6AN 9/16"-18 Female PRV Activation: 150 PSI Impeller Design: Roller vane with ceramic end plate VOLTAGE SPECS: Connector Terminal: 6mm stud positive, 5mm stud negative Min Voltage Input: 10 volts Max Voltage Input: 18 volts Current Draw (40 psi): 9.73 amps no check valve, 10.68 amps with check valve (13.5v) Current Draw (120 psi): 16.07 amps no check valve, 17.13 amps with check valve (13.5v) Fuse: 25 amps (13.5v) * Power rating given at 43 PSI, 13.5v at the pump terminal with a BSFC of . Flow capability for horsepower support is ultimately dependent on fuel hose diameter, and system electrical voltage and amperage capabilities. Your vehicle's factory fuel pump wiring may not be adequate enough to handle the current draw of AEM's High Flow Fuel Pump. Please refer to the Electrical Requirements section in the instructions document for proper wiring. You can download a copy of the instructions below. Although AEM's High Flow Fuel Pumps are the same physical

size as many OEM fuel pumps, they may not be appropriate for a specific application. You can consult the Vehicle Search function on our website to see whether a pump is recommended for your vehicle. The Vehicle Search function should be used as a reference only. It is imperative that you check the fuel pump sizing for your vehicle before purchasing an AEM High Flow Fuel Pump. AEM does not condone or approve of the modification of a tank to accommodate a High Flow Fuel Pump and cannot guarantee the pump's performance or operation if any modifications are made. Designed for high output naturally aspirated and forced induction EFI vehicles Popular "044 Style" physical configuration, but with AN inlet & discharge port connections Maintains very high flow even at boosted fuel pressures; 340LPH @ 73 PSI (30 psi boost) Installs externally or in-tank Each pump individually tested to flow minimum of 400LPH (100gph) @ 40 PSI Kit includes fuel pump, -6 to -8 male AN discharge fitting with check valve, terminal nuts & boots, instructions Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves Optional -10 ORB fitting pre-filter, -6 and -8 discharge adapters without the integral check valves General PoliciesPayment Method We gladly accept PayPal and All Major Credit Cards. Warranty & Return PolicyHolley Performance Products warrants new products to be free from defects in material and workmanship for a period of 90 days from date of purchase.Holley Performance Products Limited Warranty specifically does not apply to products, which have been (a) modified or altered in any way; (b) subjected to adverse conditions, such as misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, or faulty repair; or (c) used in other than those applications recommended by Holley Performance Products. Holley Performance Products also does not warrant, and disclaims all liability for products used in racing activities and/or applications other than those specifically recommended in the current brand catalog.Buyer pays return shippingShipping & TrackingPlease see the “Shipping and Payment” tabWe ship all US orders via United Parcel Service (UPS Ground)A signature is required on all UPS orders over $750Tracking information will be sent via email after your package ships (you must supply a valid email address during checkout)We ship within 1 business day upon receipt of paymentWe do not ship to APO/FPO or US Post Office Box addressesWe ship internationally thru United States Postal Service (USPS) Express Mail International; allow extra time for international shipmentsWe can not ship as a "GIFT" or ship anything internationally with changes to the invoiceCustomer Service & FeedbackWe strive to answer questions submitted thru eBay’s message system within 1 business dayIf you have a technical question about your purchase, please call our Tech Services department at (866) 464-6553 between 8:00 am – 6:00 pm M-F and Saturdays 9:00 am to 3:00 pm.We want you to be completely satisfied with your purchase – please let us know if you have any problems with your purchase before leaving feedback so we have a chance to make it right – we want your repeat business! Check out the official Holley Performance eBay Store for more great deals!!!
